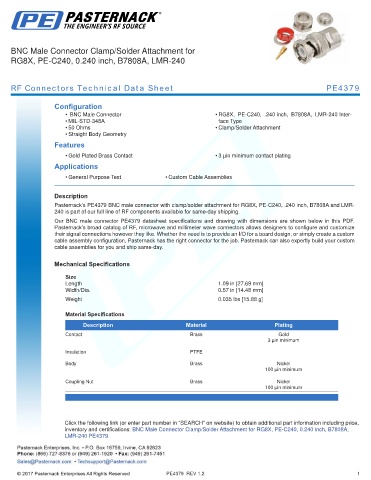

BNC Male Connector Clamp/Solder Attachment for
RG8X, PE-C240, 0.240 inch, B7808A, LMR-240

RF Connectors Technical Data Sheet PE4379

Configuration
• BNC Male Connector • RG8X, PE-C240, .240 inch, B7808A, LMR-240 Inter-
• MIL-STD-348A face Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4379 BNC male connector with clamp/solder attachment for RG8X, PE-C240, .240 inch, B7808A and LMR-
240 is part of our full line of RF components available for same-day shipping.
Our BNC male connector PE4379 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.09 in [27.69 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.035 lbs [15.88 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Clamp/Solder Attachment for RG8X, PE-C240, 0.240 inch, B7808A,
LMR-240 PE4379

PE4379 REV 1.2 1
