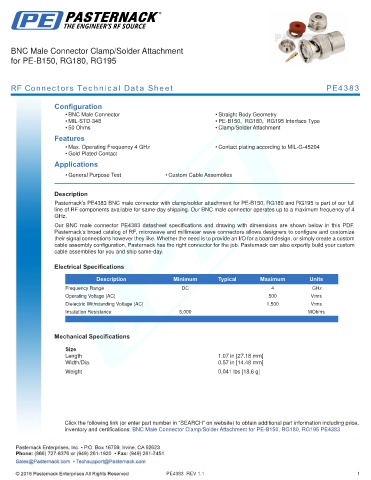

BNC Male Connector Clamp/Solder Attachment
for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4383

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348 • PE-B150, RG180, RG195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Contact plating according to MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4383 BNC male connector with clamp/solder attachment for PE-B150, RG180 and RG195 is part of our full
line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 4
GHz.
Our BNC male connector PE4383 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.07 in [27.18 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.041 lbs [18.6 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Clamp/Solder Attachment for PE-B150, RG180, RG195 PE4383
