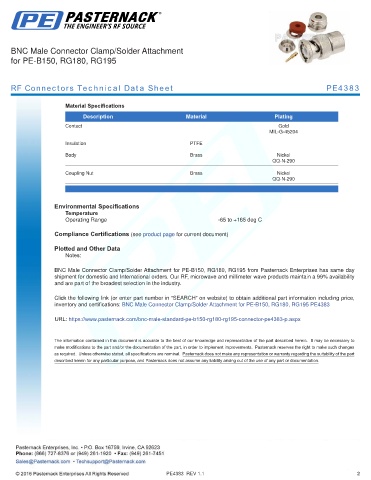

BNC Male Connector Clamp/Solder Attachment
for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4383

Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

BNC Male Connector Clamp/Solder Attachment for PE-B150, RG180, RG195 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Clamp/Solder Attachment for PE-B150, RG180, RG195 PE4383

URL: https://www.pasternack.com/bnc-male-standard-pe-b150-rg180-rg195-connector-pe4383-p.aspx

PE4383 REV 1.1 2
