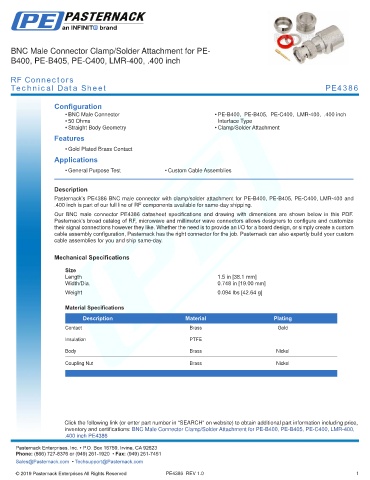

BNC Male Connector Clamp/Solder Attachment for PE-
B400, PE-B405, PE-C400, LMR-400, .400 inch

RF Connectors
Technical Data Sheet PE4386

Configuration
• BNC Male Connector • PE-B400, PE-B405, PE-C400, LMR-400, .400 inch
• 50 Ohms Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4386 BNC male connector with clamp/solder attachment for PE-B400, PE-B405, PE-C400, LMR-400 and
.400 inch is part of our full line of RF components available for same-day shipping.
Our BNC male connector PE4386 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.748 in [19.00 mm]
.
Weight 0.094 lbs [42.64 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Clamp/Solder Attachment for PE-B400, PE-B405, PE-C400, LMR-400,
-
.400 inch PE4386 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4386 REV 1.0 1
