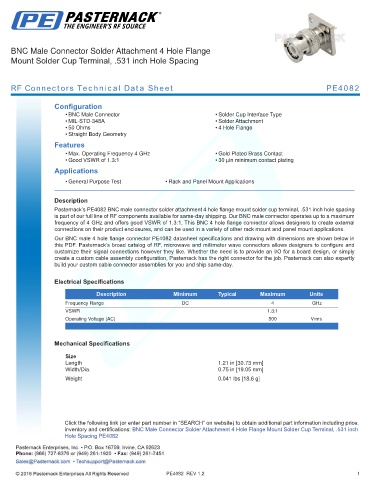

BNC Male Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4082

Configuration
• BNC Male Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4082 BNC male connector solder attachment 4 hole flange mount solder cup terminal, .531 inch hole spacing
is part of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 4 GHz and offers good VSWR of 1.3:1. This BNC 4 hole flange connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our BNC male 4 hole flange connector PE4082 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.21 in [30.73 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.041 lbs [18.6 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .531 inch
Hole Spacing PE4082

PE4082 REV 1.2 1
