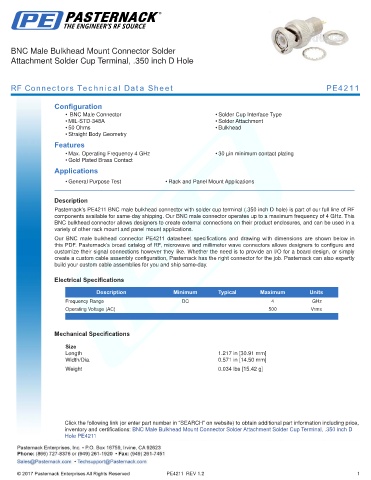

BNC Male Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4211

Configuration
• BNC Male Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4211 BNC male bulkhead connector with solder cup terminal (.350 inch D hole) is part of our full line of RF
components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 4 GHz. This
BNC bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
Our BNC male bulkhead connector PE4211 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.217 in [30.91 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.034 lbs [15.42 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D
Hole PE4211

PE4211 REV 1.2 1
