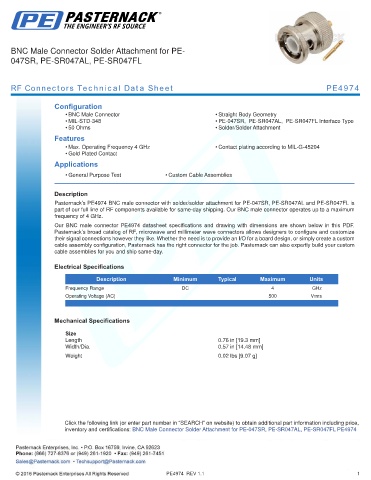

BNC Male Connector Solder Attachment for PE-
047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE4974

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348 • PE-047SR, PE-SR047AL, PE-SR047FL Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Contact plating according to MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4974 BNC male connector with solder/solder attachment for PE-047SR, PE-SR047AL and PE-SR047FL is
part of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 4 GHz.
Our BNC male connector PE4974 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.76 in [19.3 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL PE4974

PE4974 REV 1.1 1
