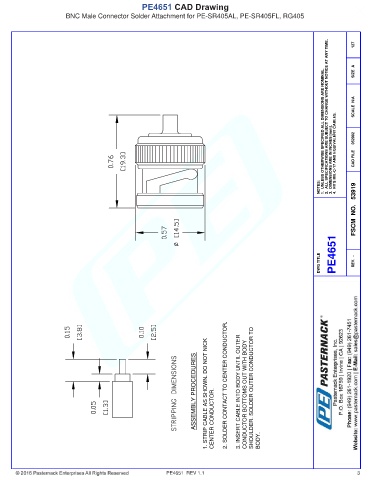

PE4651 CAD Drawing
BNC Male Connector Solder Attachment for PE-SR405AL, PE-SR405FL, RG405

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4651 REV. -

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK CENTER CONDUCTOR. 2. SOLDER CONTACT TO CENTER CONDUCTOR. 3. INSERT CABLE INTO BODY UNTIL OUTER CONDUCTOR BOTTOMS OUT WITH BODY SHOULDER. SOLDER OUTER CONDUCTOR TO

PE4651 REV 1.1 BODY. 3
