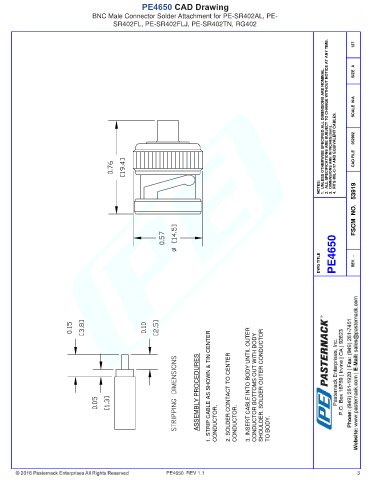

PE4650 CAD Drawing
BNC Male Connector Solder Attachment for PE-SR402AL, PE-
SR402FL, PE-SR402FLJ, PE-SR402TN, RG402
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4650 REV. -
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & TIN CENTER CONDUCTOR. 2. SOLDER CONTACT TO CENTER CONDUCTOR. 3. INSERT CABLE INTO BODY UNTIL OUTER CONDUCTOR BOTTOMS OUT WITH BODY SHOULDER. SOLDER OUTER CONDUCTOR TO BODY.
PE4650 REV 1.1 3
