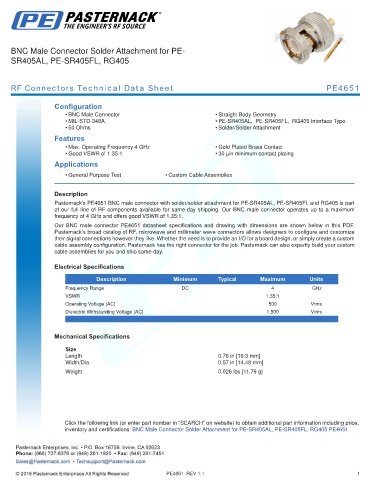

BNC Male Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, RG405

RF Connectors Technical Data Sheet PE4651

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348A • PE-SR405AL, PE-SR405FL, RG405 Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4651 BNC male connector with solder/solder attachment for PE-SR405AL, PE-SR405FL and RG405 is part
of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum
frequency of 4 GHz and offers good VSWR of 1.35:1.
Our BNC male connector PE4651 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 0.76 in [19.3 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.026 lbs [11.79 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Solder Attachment for PE-SR405AL, PE-SR405FL, RG405 PE4651

PE4651 REV 1.1 1
