BNC Male Connector Solder Attachment for PE-
SR401AL, PE-SR401FL, RG401

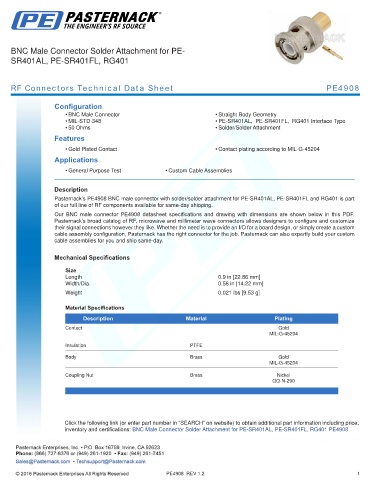

RF Connectors Technical Data Sheet PE4908

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348 • PE-SR401AL, PE-SR401FL, RG401 Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4908 BNC male connector with solder/solder attachment for PE-SR401AL, PE-SR401FL and RG401 is part
of our full line of RF components available for same-day shipping.
Our BNC male connector PE4908 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.9 in [22.86 mm]
Width/Dia. 0.56 in [14.22 mm]
.
Weight 0.021 lbs [9.53 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Gold
MIL-G-45204

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Solder Attachment for PE-SR401AL, PE-SR401FL, RG401 PE4908

PE4908 REV 1.2 1
