BNC Female Connector Clamp/Solder
Attachment for RG174, RG316, RG188

RF Connectors

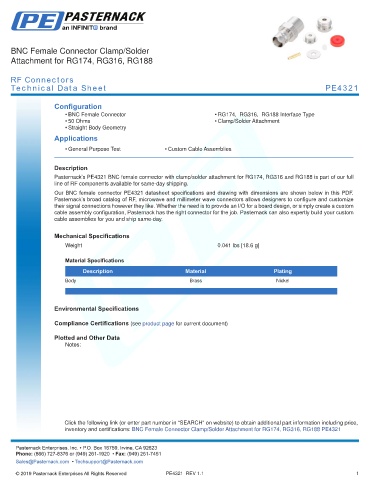

Technical Data Sheet PE4321

Configuration
• BNC Female Connector • RG174, RG316, RG188 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4321 BNC female connector with clamp/solder attachment for RG174, RG316 and RG188 is part of our full
line of RF components available for same-day shipping.
Our BNC female connector PE4321 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel
.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Clamp/Solder Attachment for RG174, RG316, RG188 PE4321 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4321 REV 1.1 1
