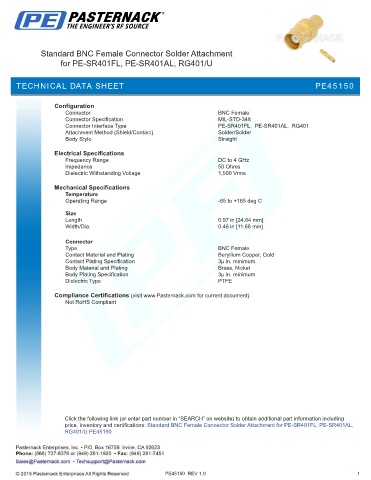

Standard BNC Female Connector Solder Attachment
for PE-SR401FL, PE-SR401AL, RG401/U

TECHNICAL DATA SHEET PE45150

Configuration
Connector BNC Female
Connector Specification MIL-STD-348
Connector Interface Type PE-SR401FL, PE-SR401AL, RG401
Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight

Electrical Specifications
Frequency Range DC to 4 GHz
Impedance 50 Ohms
Dielectric Withstanding Voltage 1,500 Vrms

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 0.97 in [24.64 mm]
Width/Dia. 0.46 in [11.68 mm]
.
Connector
Type BNC Female
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 3µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 3µ in. minimum
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Standard BNC Female Connector Solder Attachment for PE-SR401FL, PE-SR401AL,
RG401/U PE45150

PE45150 REV 1.0 1
