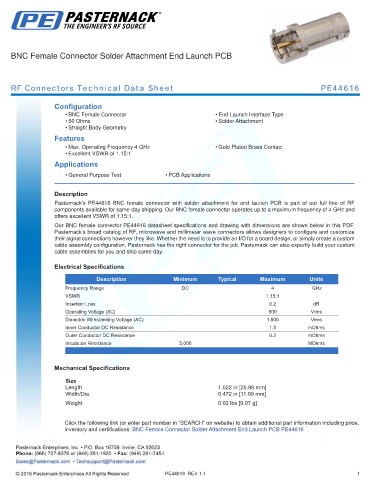

BNC Female Connector Solder Attachment End Launch PCB

RF Connectors Technical Data Sheet PE44616

Configuration
• BNC Female Connector • End Launch Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.15:1
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44616 BNC female connector with solder attachment for end launch PCB is part of our full line of RF
components available for same-day shipping. Our BNC female connector operates up to a maximum frequency of 4 GHz and
offers excellent VSWR of 1.15:1.
Our BNC female connector PE44616 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.15:1
Insertion Loss 0.2 dB
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.2 mOhms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.022 in [25.96 mm]
Width/Dia. 0.472 in [11.99 mm]
.
Weight 0.02 lbs [9.07 g]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Solder Attachment End Launch PCB PE44616

PE44616 REV 1.1 1
