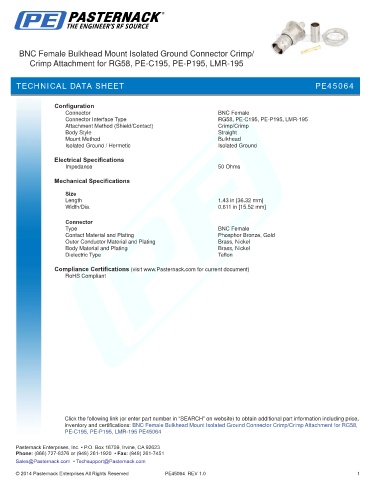

BNC Female Bulkhead Mount Isolated Ground Connector Crimp/
Crimp Attachment for RG58, PE-C195, PE-P195, LMR-195

TECHNICAL DATA SHEET PE45064

Configuration
Connector BNC Female
Connector Interface Type RG58, PE-C195, PE-P195, LMR-195
Attachment Method (Shield/Contact) Crimp/Crimp
Body Style Straight
Mount Method Bulkhead
Isolated Ground / Hermetic Isolated Ground

Electrical Specifications
Impedance 50 Ohms
Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.611 in [15.52 mm]
.
Connector
Type BNC Female
Contact Material and Plating Phosphor Bronze, Gold
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Isolated Ground Connector Crimp/Crimp Attachment for RG58,
PE-C195, PE-P195, LMR-195 PE45064

PE45064 REV 1.0 1
