BNC Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, .100 inch, .480 inch D Hole

RF Connectors

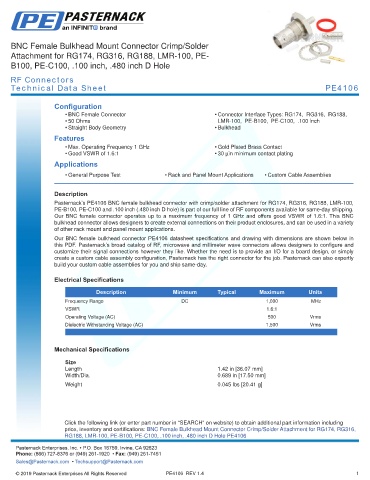

Technical Data Sheet PE4106

Configuration
• BNC Female Connector • Connector Interface Types: RG174, RG316, RG188,
• 50 Ohms LMR-100, PE-B100, PE-C100, .100 inch
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 1 GHz • Gold Plated Brass Contact
• Good VSWR of 1.6:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4106 BNC female bulkhead connector with crimp/solder attachment for RG174, RG316, RG188, LMR-100,
PE-B100, PE-C100 and .100 inch (.480 inch D hole) is part of our full line of RF components available for same-day shipping.
Our BNC female connector operates up to a maximum frequency of 1 GHz and offers good VSWR of 1.6:1. This BNC
bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Our BNC female bulkhead connector PE4106 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.6:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.42 in [36.07 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.045 lbs [20.41 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316,
-
RG188, LMR-100, PE-B100, PE-C100, .100 inch, .480 inch D Hole PE4106 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
