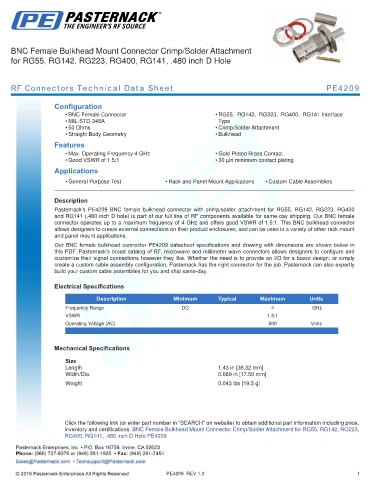

BNC Female Bulkhead Mount Connector Crimp/Solder Attachment
for RG55, RG142, RG223, RG400, RG141, .480 inch D Hole

RF Connectors Technical Data Sheet PE4209

Configuration
• BNC Female Connector • RG55, RG142, RG223, RG400, RG141 Interface
• MIL-STD-348A Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4209 BNC female bulkhead connector with crimp/solder attachment for RG55, RG142, RG223, RG400
and RG141 (.480 inch D hole) is part of our full line of RF components available for same-day shipping. Our BNC female
connector operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.5:1. This BNC bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our BNC female bulkhead connector PE4209 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.689 in [17.50 mm]
.
Weight 0.043 lbs [19.5 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG55, RG142, RG223,
RG400, RG141, .480 inch D Hole PE4209

PE4209 REV 1.3 1
