BNC Female Bulkhead Connector Clamp/Solder
Attachment For RG213, RG214, RG8, RG9,
RG11, RG225, RG393, .480 inch D Hole

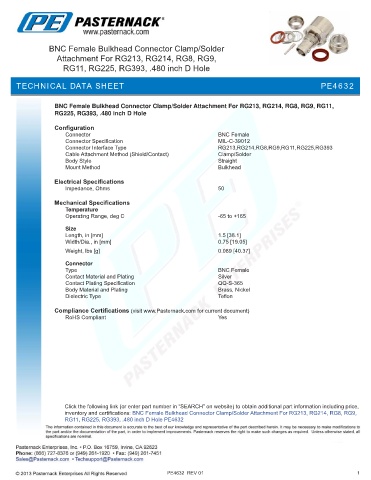

TECHNICAL DATA SHEET PE4632

BNC Female Bulkhead Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11,
RG225, RG393, .480 inch D Hole

Configuration
Connector BNC Female
Connector Specification MIL-C-39012
Connector Interface Type RG213,RG214,RG8,RG9,RG11,RG225,RG393
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.5 [38.1]
Width/Dia., in [mm] 0.75 [19.05]
.
Weight, lbs [g] 0.089 [40.37]

Connector
Type BNC Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9,
RG11, RG225, RG393, .480 inch D Hole PE4632

PE4632 REV 01 1
