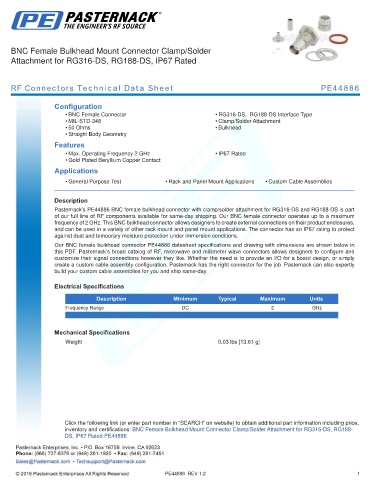

BNC Female Bulkhead Mount Connector Clamp/Solder
Attachment for RG316-DS, RG188-DS, IP67 Rated

RF Connectors Technical Data Sheet PE44886

Configuration
• BNC Female Connector • RG316-DS, RG188-DS Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • IP67 Rated
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44886 BNC female bulkhead connector with clamp/solder attachment for RG316-DS and RG188-DS is part
of our full line of RF components available for same-day shipping. Our BNC female connector operates up to a maximum
frequency of 2 GHz. This BNC bulkhead connector allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications. The connector has an IP67 rating to protect
against dust and temporary moisture protection under immersion conditions.
Our BNC female bulkhead connector PE44886 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
.

Mechanical Specifications
.
Weight 0.03 lbs [13.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Bulkhead Mount Connector Clamp/Solder Attachment for RG316-DS, RG188-
DS, IP67 Rated PE44886

PE44886 REV 1.2 1
