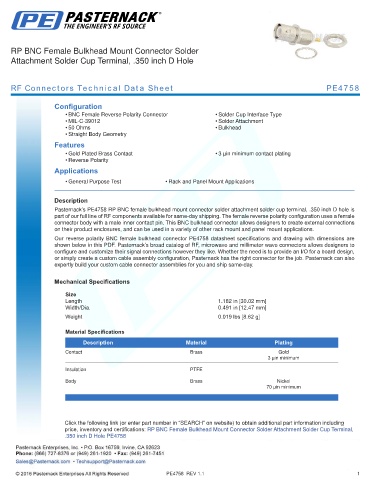

RP BNC Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .350 inch D Hole

RF Connectors Technical Data Sheet PE4758

Configuration
• BNC Female Reverse Polarity Connector • Solder Cup Interface Type
• MIL-C-39012 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
• Reverse Polarity
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4758 RP BNC female bulkhead mount connector solder attachment solder cup terminal, .350 inch D hole is
part of our full line of RF components available for same-day shipping. The female reverse polarity configuration uses a female
connector body with a male inner contact pin. This BNC bulkhead connector allows designers to create external connections
on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our reverse polarity BNC female bulkhead connector PE4758 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.182 in [30.02 mm]
Width/Dia. 0.491 in [12.47 mm]
.
Weight 0.019 lbs [8.62 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.350 inch D Hole PE4758

PE4758 REV 1.1 1
