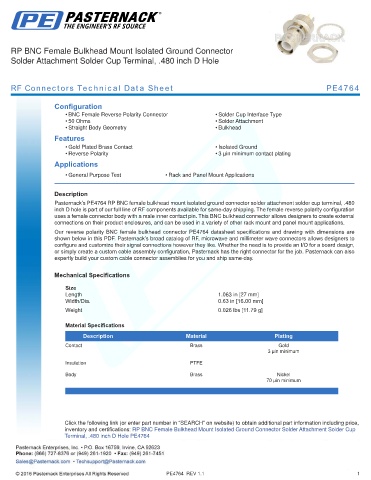

RP BNC Female Bulkhead Mount Isolated Ground Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole

RF Connectors Technical Data Sheet PE4764

Configuration
• BNC Female Reverse Polarity Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact • Isolated Ground
• Reverse Polarity • 3 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4764 RP BNC female bulkhead mount isolated ground connector solder attachment solder cup terminal, .480
inch D hole is part of our full line of RF components available for same-day shipping. The female reverse polarity configuration
uses a female connector body with a male inner contact pin. This BNC bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our reverse polarity BNC female bulkhead connector PE4764 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.063 in [27 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.026 lbs [11.79 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum
Insulation PTFE
Body Brass Nickel
70 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Bulkhead Mount Isolated Ground Connector Solder Attachment Solder Cup
Terminal, .480 inch D Hole PE4764

PE4764 REV 1.1 1
