RP BNC Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

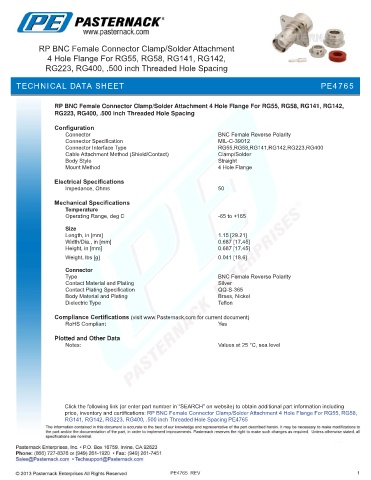

TECHNICAL DATA SHEET PE4765

RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

Configuration
Connector BNC Female Reverse Polarity
Connector Specification MIL-C-39012
Connector Interface Type RG55,RG58,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.15 [29.21]
Width/Dia., in [mm] 0.687 [17.45]
Height, in [mm] 0.687 [17.45]
.
Weight, lbs [g] 0.041 [18.6]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58,
RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4765

PE4765 REV 1
