RP BNC Female Connector Solder Attachment 4 Hole Flange
Solder Cup Terminal, .500 inch Threaded Hole Spacing

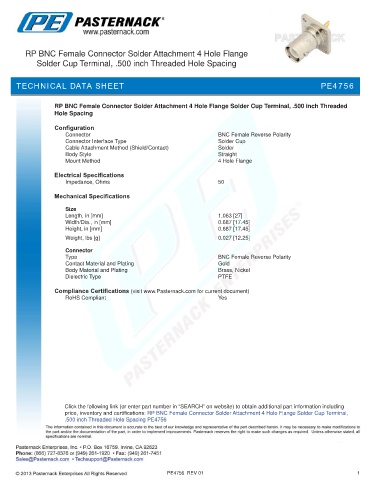

TECHNICAL DATA SHEET PE4756

RP BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .500 inch Threaded
Hole Spacing

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.063 [27]
Width/Dia., in [mm] 0.687 [17.45]
Height, in [mm] 0.687 [17.45]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: RP BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal,
.500 inch Threaded Hole Spacing PE4756

PE4756 REV 01 1
