RP BNC Female Connector Solder Attachment 4 Hole
Flange Solder Cup Terminal, .500 inch Hole Spacing

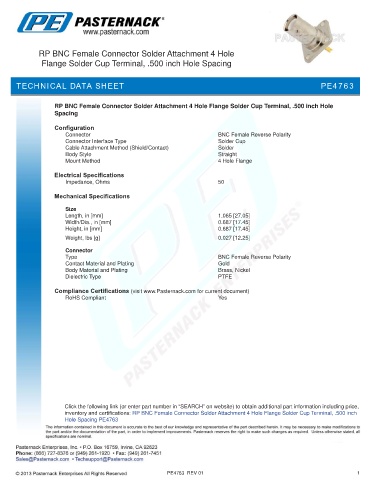

TECHNICAL DATA SHEET PE4763

RP BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .500 inch Hole
Spacing

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.065 [27.05]
Width/Dia., in [mm] 0.687 [17.45]
Height, in [mm] 0.687 [17.45]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .500 inch
Hole Spacing PE4763
