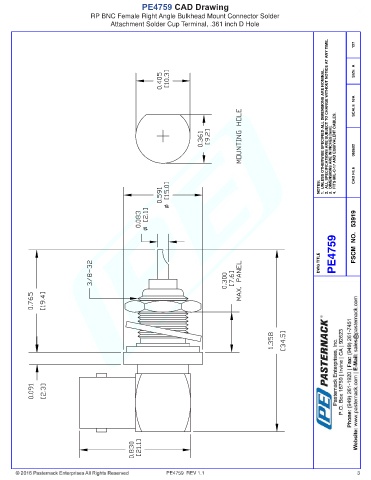

PE4759 CAD Drawing
RP BNC Female Right Angle Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .361 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060602
NOTES: CAD FILE
DWG TITLE PE4759 FSCM NO. 53919
PE4759 REV 1.1 3
