RP BNC Female Right Angle Connector Solder Attachment
4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing

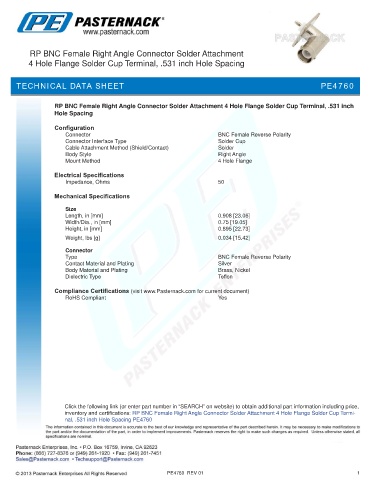

TECHNICAL DATA SHEET PE4760

RP BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .531 inch
Hole Spacing

Configuration
Connector BNC Female Reverse Polarity
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 0.908 [23.06]
Width/Dia., in [mm] 0.75 [19.05]
Height, in [mm] 0.895 [22.73]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type BNC Female Reverse Polarity
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Solder Cup Termi-
nal, .531 inch Hole Spacing PE4760

PE4760 REV 01 1
