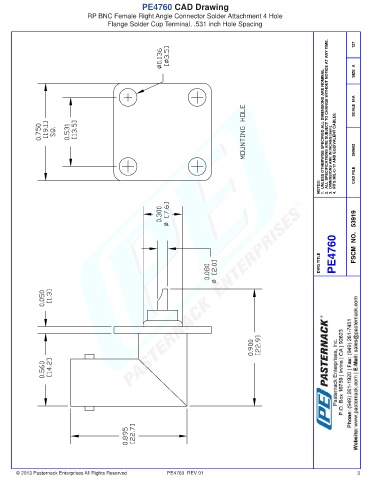

PE4760 CAD Drawing
RP BNC Female Right Angle Connector Solder Attachment 4 Hole
Flange Solder Cup Terminal, .531 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060602

NOTES: CAD FILE

DWG TITLE PE4760 FSCM NO. 53919

© 2013 Pasternack Enterprises All Rights Reserved PE4760 REV 01 3
