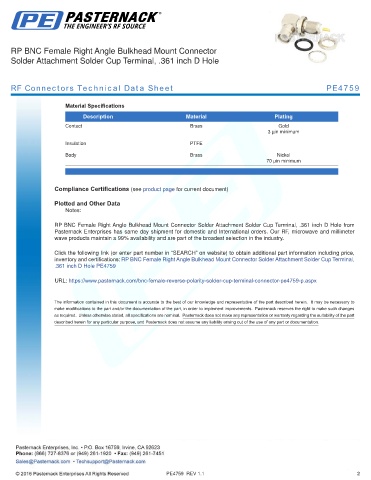

RP BNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Solder Cup Terminal, .361 inch D Hole

RF Connectors Technical Data Sheet PE4759

Material Specifications
Description Material Plating
Contact Brass Gold
3 µin minimum

Insulation PTFE
Body Brass Nickel
70 µin minimum

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP BNC Female Right Angle Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .361 inch D Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Right Angle Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.361 inch D Hole PE4759

URL: https://www.pasternack.com/bnc-female-reverse-polarity-solder-cup-terminal-connector-pe4759-p.aspx
