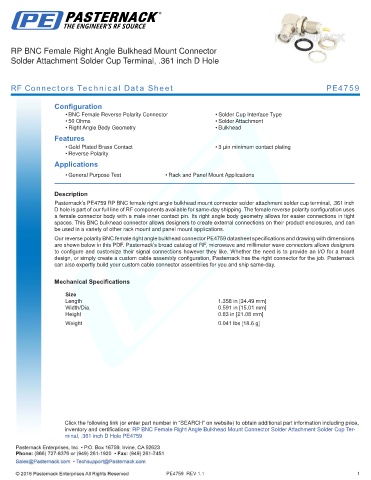

RP BNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Solder Cup Terminal, .361 inch D Hole

RF Connectors Technical Data Sheet PE4759

Configuration
• BNC Female Reverse Polarity Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
• Reverse Polarity
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4759 RP BNC female right angle bulkhead mount connector solder attachment solder cup terminal, .361 inch
D hole is part of our full line of RF components available for same-day shipping. The female reverse polarity configuration uses
a female connector body with a male inner contact pin. Its right angle body geometry allows for easier connections in tight
spaces. This BNC bulkhead connector allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications.
Our reverse polarity BNC female right angle bulkhead connector PE4759 datasheet specifications and drawing with dimensions
are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers
to configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board
design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack
can also expertly build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.358 in [34.49 mm]
Width/Dia. 0.591 in [15.01 mm]
Height 0.83 in [21.08 mm]
.
Weight 0.041 lbs [18.6 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP BNC Female Right Angle Bulkhead Mount Connector Solder Attachment Solder Cup Ter-
minal, .361 inch D Hole PE4759

PE4759 REV 1.1 1
