C Male Connector Crimp/Solder Attachment for
RG55, RG141, RG142, RG223, RG400

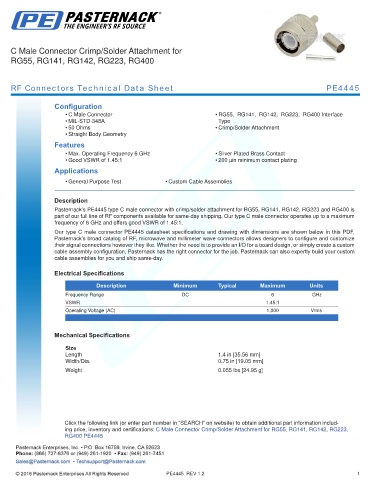

RF Connectors Technical Data Sheet PE4445

Configuration
• C Male Connector • RG55, RG141, RG142, RG223, RG400 Interface
• MIL-STD-348A Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Silver Plated Brass Contact
• Good VSWR of 1.45:1 • 200 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4445 type C male connector with crimp/solder attachment for RG55, RG141, RG142, RG223 and RG400 is
part of our full line of RF components available for same-day shipping. Our type C male connector operates up to a maximum
frequency of 6 GHz and offers good VSWR of 1.45:1.
Our type C male connector PE4445 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.45:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.4 in [35.56 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: C Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223,
RG400 PE4445
