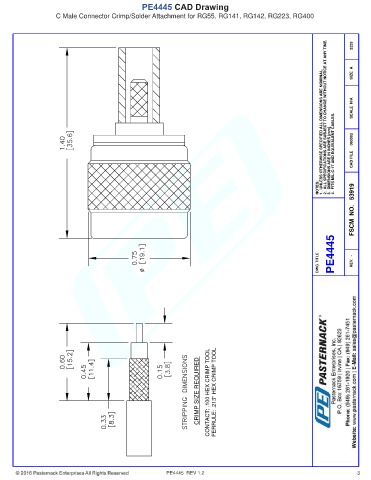

PE4445 CAD Drawing
C Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 060302 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4445 REV. -

CRIMP SIZE REQUIRED CONTACT: .100 HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL

PE4445 REV 1.2 3
