C Male Connector Clamp/Solder Attachment for
RG55, RG58, RG141, RG142, RG223, RG303,
RG400, PE-C195, PE-P195, LMR-195

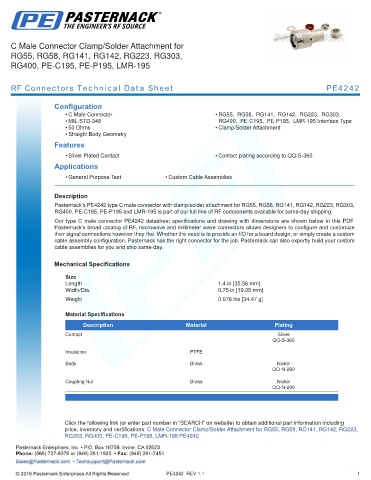

RF Connectors Technical Data Sheet PE4242

Configuration
• C Male Connector • RG55, RG58, RG141, RG142, RG223, RG303,
• MIL-STD-348 RG400, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4242 type C male connector with clamp/solder attachment for RG55, RG58, RG141, RG142, RG223, RG303,
RG400, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping.
Our type C male connector PE4242 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.4 in [35.56 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.076 lbs [34.47 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: C Male Connector Clamp/Solder Attachment for RG55, RG58, RG141, RG142, RG223,
RG303, RG400, PE-C195, PE-P195, LMR-195 PE4242

PE4242 REV 1.1 1
