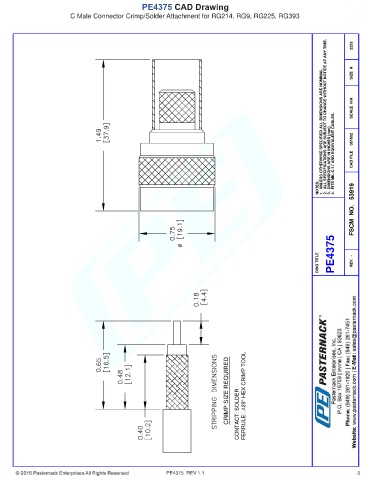

PE4375 CAD Drawing
C Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 051602 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4375 REV. -

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

PE4375 REV 1.1 3
