C Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .720 inch D Hole High Voltage

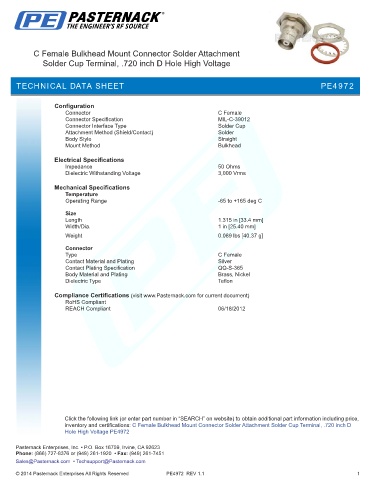

TECHNICAL DATA SHEET PE4972

Configuration
Connector C Female
Connector Specification MIL-C-39012
Connector Interface Type Solder Cup
Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance 50 Ohms
Dielectric Withstanding Voltage 3,000 Vrms

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 1.315 in [33.4 mm]
Width/Dia. 1 in [25.40 mm]
.
Weight 0.089 lbs [40.37 g]
Connector
Type C Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .720 inch D
Hole High Voltage PE4972

PE4972 REV 1.1 1
