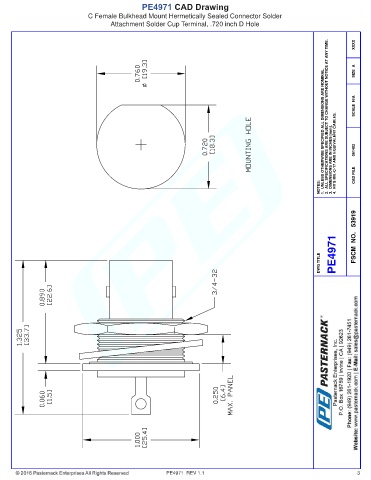

PE4971 CAD Drawing
C Female Bulkhead Mount Hermetically Sealed Connector Solder
Attachment Solder Cup Terminal, .720 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061402

NOTES: CAD FILE

DWG TITLE PE4971 FSCM NO. 53919

PE4971 REV 1.1 3
