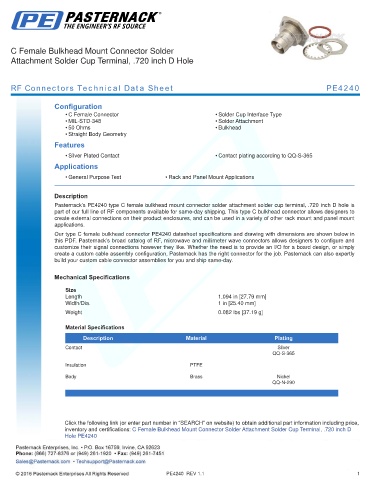

C Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .720 inch D Hole

RF Connectors Technical Data Sheet PE4240

Configuration
• C Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4240 type C female bulkhead mount connector solder attachment solder cup terminal, .720 inch D hole is
part of our full line of RF components available for same-day shipping. This type C bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type C female bulkhead connector PE4240 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.094 in [27.79 mm]
Width/Dia. 1 in [25.40 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .720 inch D
Hole PE4240

PE4240 REV 1.1 1
