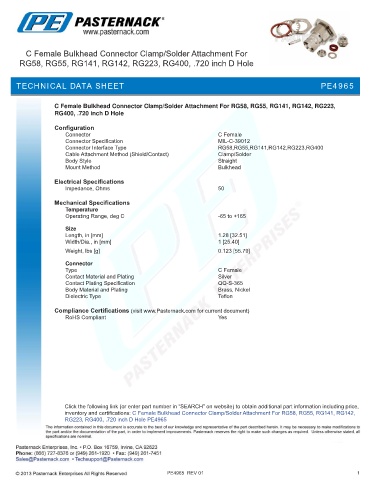

TECHNICAL DATA SHEET PE4965

C Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400, .720 inch D Hole

Configuration
Connector C Female
Connector Specification MIL-C-39012
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.28 [32.51]
Width/Dia., in [mm] 1 [25.40]
.
Weight, lbs [g] 0.123 [55.79]

Connector
Type C Female
Contact Material and Plating Silver
Contact Plating Specification QQ-S-365
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: C Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142,
RG223, RG400, .720 inch D Hole PE4965

PE4965 REV 01 1
