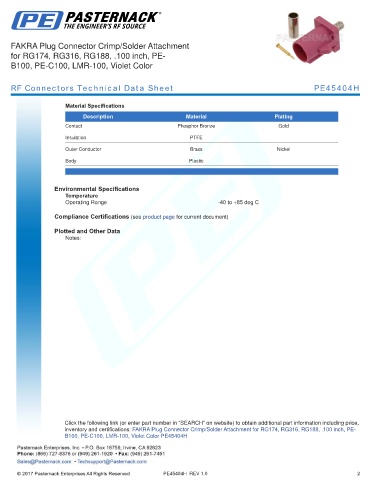

FAKRA Plug Connector Crimp/Solder Attachment
for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Violet Color
RF Connectors Technical Data Sheet PE45404H
Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold
Insulation PTFE
Outer Conductor Brass Nickel
Body Plastic
.
Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Violet Color PE45404H
PE45404H REV 1.0 2
