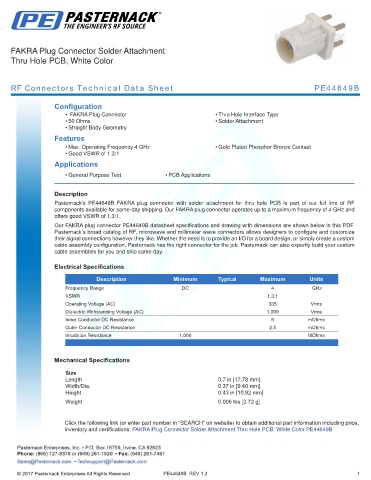

FAKRA Plug Connector Solder Attachment
Thru Hole PCB, White Color

RF Connectors Technical Data Sheet PE44649B

Configuration
• FAKRA Plug Connector • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44649B FAKRA plug connector with solder attachment for thru hole PCB is part of our full line of RF
components available for same-day shipping. Our FAKRA plug connector operates up to a maximum frequency of 4 GHz and
offers good VSWR of 1.3:1.
Our FAKRA plug connector PE44649B datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.7 in [17.78 mm]
Width/Dia. 0.37 in [9.40 mm]
Height 0.43 in [10.92 mm]
.
Weight 0.006 lbs [2.72 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Plug Connector Solder Attachment Thru Hole PCB, White Color PE44649B

PE44649B REV 1.2 1
