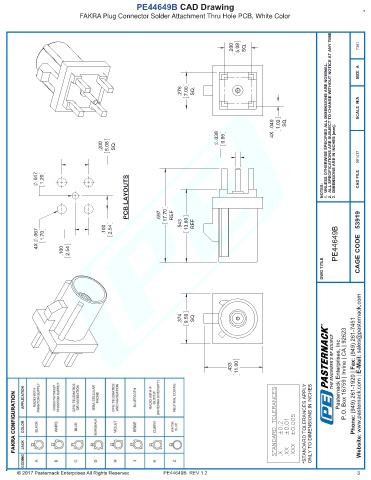

PE44649B CAD Drawing
FAKRA Plug Connector Solder Attachment Thru Hole PCB, White Color

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

.200 5.08 SQ. 7361

SIZE A

.276 7.00 SQ.
SCALE N/A

.040 1.02 SQ.
.038 0.96 4X 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.200 5.08 SQ. 3. DIMENSIONS ARE IN INCHES [mm]. 091417

.047 1.20 CAD FILE
PCB LAYOUTS NOTES:

.697 17.70 REF .543 13.80 REF
.067 1.70 .100 2.54

PE44649B CAGE CODE 53919
4X
.100 2.54
DWG TITLE

.374 9.50 SQ
R
THE ENGINEER'S RF SOURCE

.433 11.00

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE44649B REV 1.2 3
