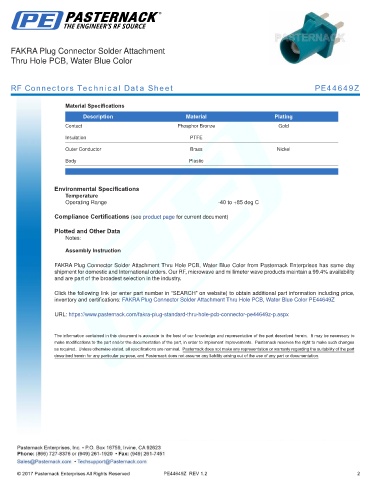

FAKRA Plug Connector Solder Attachment
Thru Hole PCB, Water Blue Color

RF Connectors Technical Data Sheet PE44649Z

Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold

Insulation PTFE
Outer Conductor Brass Nickel
Body Plastic

.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Assembly Instruction

FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color PE44649Z

URL: https://www.pasternack.com/fakra-plug-standard-thru-hole-pcb-connector-pe44649z-p.aspx

PE44649Z REV 1.2 2
