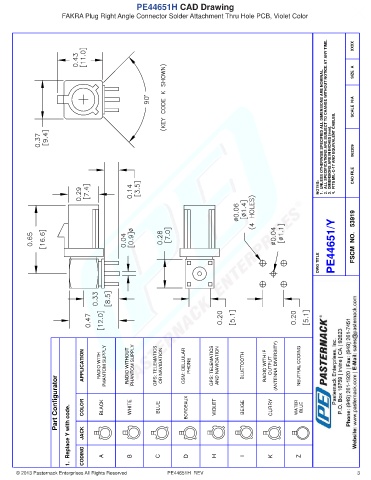

PE44651H CAD Drawing
FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Violet Color

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062209

NOTES: CAD FILE

PE44651/Y FSCM NO. 53919

DWG TITLE

APPLICATION RADIO WITH PHANTOM SUPPLY RADIO WITHOUT PHANTOM SUPPLY GPS: TELEMATICS OR NAVIGATION GSM: CELLULAR PHONE GPS: TELEMATICS AND NAVIGATION BLUETOOTH RADIO WITH IF OUTPUT (ANTENNA DIVERSITY) NEUTRAL CODING

Part Configurator COLOR BLACK WHITE BLUE BORDEAUX VIOLET BEIGE CURRY WATER BLUE

1. Replace Y with code. JACK

CODING
A
D
© 2013 Pasternack Enterprises All Rights Reserved B C PE44651H REV H I K Z 3
