FAKRA Plug Right Angle Connector Solder
Attachment Thru Hole PCB, Curry Color

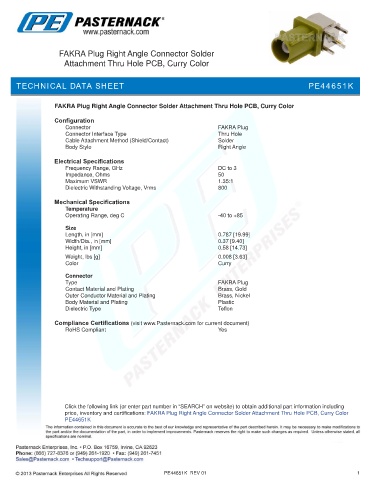

TECHNICAL DATA SHEET PE44651K

FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Curry Color

Configuration
Connector FAKRA Plug
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Electrical Specifications
Frequency Range, GHz DC to 3
Impedance, Ohms 50
Maximum VSWR 1.35:1
Dielectric Withstanding Voltage, Vrms 800

Mechanical Specifications
Temperature
Operating Range, deg C -40 to +85
Size
Length, in [mm] 0.787 [19.99]
Width/Dia., in [mm] 0.37 [9.40]
Height, in [mm] 0.58 [14.73]
.
Weight, lbs [g] 0.008 [3.63]
Color Curry
Connector
Type FAKRA Plug
Contact Material and Plating Brass, Gold
Outer Conductor Material and Plating Brass, Nickel
Body Material and Plating Plastic
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: FAKRA Plug Right Angle Connector Solder Attachment Thru Hole PCB, Curry Color
PE44651K

PE44651K REV 01 1
