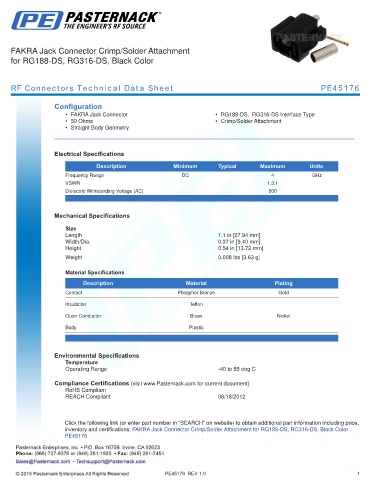

FAKRA Jack Connector Crimp/Solder Attachment
for RG188-DS, RG316-DS, Black Color

RF Connectors Technical Data Sheet PE45176

Configuration
• FAKRA Jack Connector • RG188-DS, RG316-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Dielectric Withstanding Voltage (AC) 800
.

Mechanical Specifications
Size
Length 1.1 in [27.94 mm]
Width/Dia. 0.37 in [9.40 mm]
Height 0.54 in [13.72 mm]
.
Weight 0.008 lbs [3.63 g]
.
Material Specifications

Description Material Plating
Contact Phosphor Bronze Gold
Insulation Teflon
Outer Conductor Brass Nickel

Body Plastic
.

Environmental Specifications
Temperature
Operating Range -40 to 85 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Jack Connector Crimp/Solder Attachment for RG188-DS, RG316-DS, Black Color
PE45176

PE45176 REV 1.0 1
