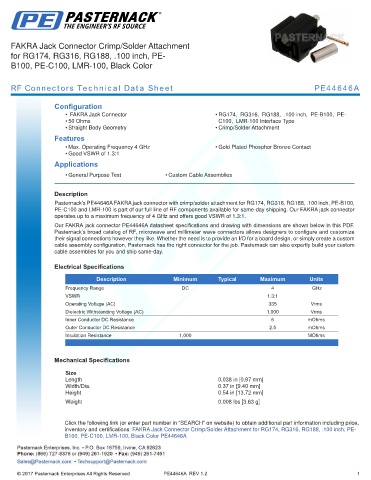

FAKRA Jack Connector Crimp/Solder Attachment
for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Black Color

RF Connectors Technical Data Sheet PE44646A

Configuration
• FAKRA Jack Connector • RG174, RG316, RG188, .100 inch, PE-B100, PE-
• 50 Ohms C100, LMR-100 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44646A FAKRA jack connector with crimp/solder attachment for RG174, RG316, RG188, .100 inch, PE-B100,
PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our FAKRA jack connector
operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.3:1.
Our FAKRA jack connector PE44646A datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.038 in [0.97 mm]
Width/Dia. 0.37 in [9.40 mm]
Height 0.54 in [13.72 mm]
.
Weight 0.008 lbs [3.63 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FAKRA Jack Connector Crimp/Solder Attachment for RG174, RG316, RG188, .100 inch, PE-
B100, PE-C100, LMR-100, Black Color PE44646A

PE44646A REV 1.2 1
