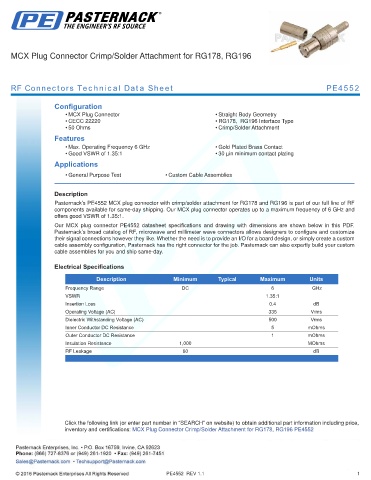

MCX Plug Connector Crimp/Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4552

Configuration
• MCX Plug Connector • Straight Body Geometry
• CECC 22220 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4552 MCX plug connector with crimp/solder attachment for RG178 and RG196 is part of our full line of RF
components available for same-day shipping. Our MCX plug connector operates up to a maximum frequency of 6 GHz and
offers good VSWR of 1.35:1.
Our MCX plug connector PE4552 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Insertion Loss 0.4 dB
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
Inner Conductor DC Resistance 5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 1,000 MOhms
RF Leakage 60 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Crimp/Solder Attachment for RG178, RG196 PE4552

PE4552 REV 1.1 1
