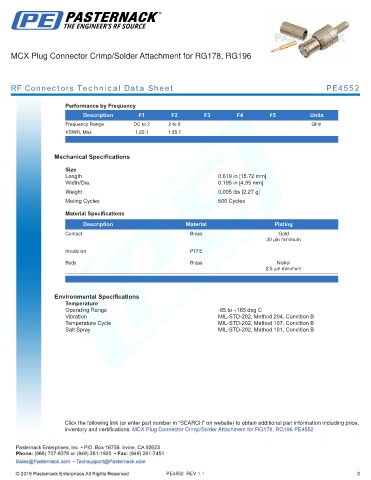

MCX Plug Connector Crimp/Solder Attachment for RG178, RG196
RF Connectors Technical Data Sheet PE4552
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 2 2 to 6 GHz
VSWR, Max 1.22:1 1.35:1
.
Mechanical Specifications
Size
Length 0.619 in [15.72 mm]
Width/Dia. 0.195 in [4.95 mm]
.
Weight 0.005 lbs [2.27 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
2.5 µin minimum
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycle MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Crimp/Solder Attachment for RG178, RG196 PE4552
PE4552 REV 1.1 2
