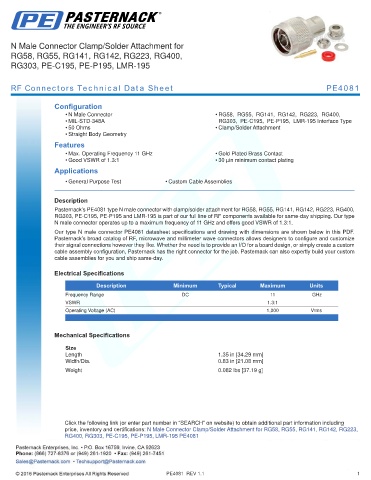

N Male Connector Clamp/Solder Attachment for
RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4081

Configuration
• N Male Connector • RG58, RG55, RG141, RG142, RG223, RG400,
• MIL-STD-348A RG303, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4081 type N male connector with clamp/solder attachment for RG58, RG55, RG141, RG142, RG223, RG400,
RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day shipping. Our type
N male connector operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.3:1.
Our type N male connector PE4081 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.35 in [34.29 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.082 lbs [37.19 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195 PE4081

PE4081 REV 1.1 1
