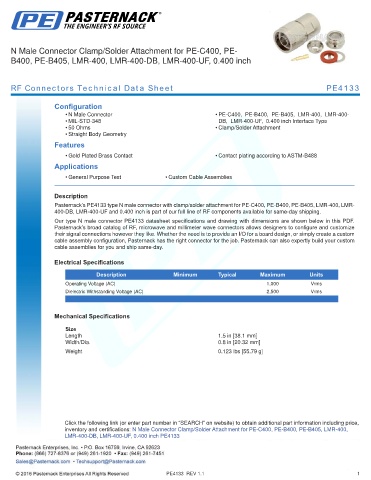

N Male Connector Clamp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch

RF Connectors Technical Data Sheet PE4133

Configuration
• N Male Connector • PE-C400, PE-B400, PE-B405, LMR-400, LMR-400-
• MIL-STD-348 DB, LMR-400-UF, 0.400 inch Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • Contact plating according to ASTM-B488
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4133 type N male connector with clamp/solder attachment for PE-C400, PE-B400, PE-B405, LMR-400, LMR-
400-DB, LMR-400-UF and 0.400 inch is part of our full line of RF components available for same-day shipping.
Our type N male connector PE4133 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.123 lbs [55.79 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Clamp/Solder Attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF, 0.400 inch PE4133

PE4133 REV 1.1 1
