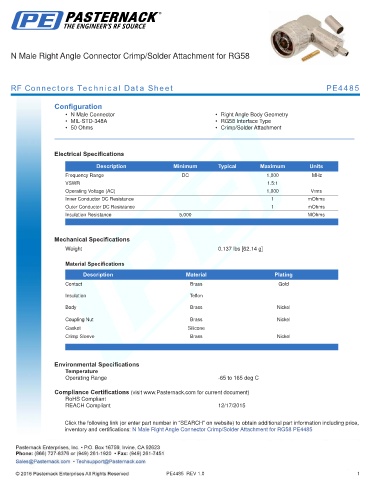

N Male Right Angle Connector Crimp/Solder Attachment for RG58

RF Connectors Technical Data Sheet PE4485

Configuration
• N Male Connector • Right Angle Body Geometry
• MIL-STD-348A • RG58 Interface Type
• 50 Ohms • Crimp/Solder Attachment
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 1 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications
.
Weight 0.137 lbs [62.14 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation Teflon

Body Brass Nickel
Coupling Nut Brass Nickel
Gasket Silicone
Crimp Sleeve Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Crimp/Solder Attachment for RG58 PE4485
